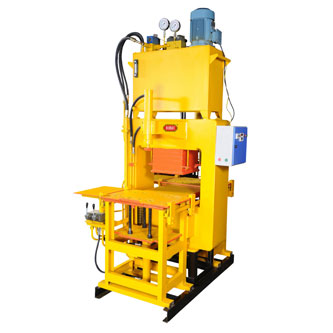

Product - Paver Block Machine
Back to Product Category
Model No. P/02
Catalog Page No.
Main Features of Interlocking Paver Block Machine
Maximum Pressure Tonnage |
: | 70 & 90 |
Manufacturing Capacity |
: | 450 mm x 450 mm Mosaic Tiles 450 mm x 300 mm x 150 mm Kerb Stone |
Oil Cooling System Facilitate to cool down Oil even Press is working |
||
Trolly System - Mould moves/operates through Trolly. |
||
Auto Stop |
||
Safe working conditions with electrical and mechanical interlock systems |
||
The Pressing operation is timer controlled with single switch operation for both pressing and return strokes ensuring uniform pressure on all sides of tiles |
||
Power Required |
: | 5 H.P. |
Each Paver Machine can give Production of 1400 to 1800 Nos. Paver in 1 shift |
||
Oil Tank Capacity |
: | 100 Litres |
Machine Size |
: | 150 cm x 123 cm x 270 cm |
Technical Information
- Piston is Hard Chrome
- Wiper on Cylinder top
- At a time, 4 workers can work
- For removing of Ring, Facility of Hydraulic Stand is available
- It can also Manufacture Chequered Tiles, Elevation Wall Tiles, Cable Tiles
- Paver made will have shining smooth finish
- Pavers mfgd. from our Paver Machine are fitted in Petrol (Fuel) Pump, Railway Plateform, Air Port, Swimming Pool, Garden Resort, General Public Parking Place, Industrial Parking Place, Railway Crossing & Container Yard
- Paver Machine facilitate Mfg. of Paver pc. in two colours : bottom in grey cement material and top pc. (thickness 10 mm) as required/selected by customer. This help cost efficiency of paver
*Indicative only. Production depends upon the labour efficiency and mix quality. "Higher Tonnages, Brick size as per customer specifications. Standard Brick size is 230 x 110 x 75 mm
Specifications are subject to change for improvement. Specifications, weights, volume are approximate only Manufactures may introduce such alterations as they may deem fit without previous notice. Machines can be supplied as per customer's Specific requirements, Machine capacity mentioned is only for guidance. It will vary with materials.
