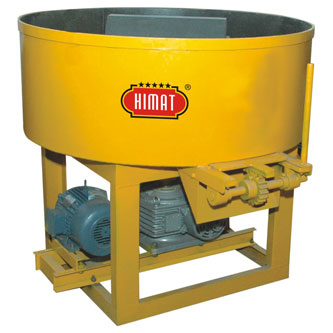

Pan Mixer
Catalog Page No.
To Mix the Raw Materials
Capacity |
: | 150 kg to 500 kg / Batch |
Power (Motor) |
: | 5 H.P. to 10 H.P. |
Manufacturing |
: | Mixing of raw materials of Fly-Ash Bricks and second layer of Paver Blocks |
Material Charge |
: | Manual or Conveyor |
Discharge (Manual) |
: | Bottom Door opening |
Mixing |
: | By Heavy Rollers and hand faced Scrapers |
Technical Information
- Piston is Hard Chrome
- Wiper on Cylinder top
- Super Vibration and Pressing Systems for Maximum Compaction and Strength
- Discharge of Finish Product through Conveyor Belt for Faster Production
- Automatic Pressing and Demoulding by Preset auto timer control
- The Press is controlled by jeans of PLC
- Fly-Ash Bricks, made will have shining smooth finish
- Safe Working conditions with electrical and mechanical interlock system
- Twelve Workers require for total production process
- Pan Mixer : Capacity : 350 Kgs/Batch. Power Required 10 H.P.
- Conveyor Belt : Power Required : 2 H.P.
*Indicative only. Production depends upon the labour efficiency and mix quality. "Higher Tonnages, Brick size as per customer specifications. Standard Brick size is 230 x 110 x 75 mm
Specifications are subject to change for improvement. Specifications, weights, volume are approximate only Manufactures may introduce such alterations as they may deem fit without previous notice. Machines can be supplied as per customer's Specific requirements, Machine capacity mentioned is only for guidance. It will vary with materials.
